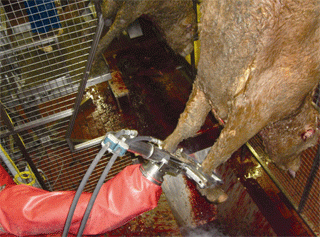

The Jarvis Model JR-50 -- robotic beef hock cutter.

•Six-axis Robotic Beef Hock Cutter - capable of line speeds up to 450 carcasses per hour.
•Real-time vision for precise and consistent cuts.
•User adjustable length and angle of cuts allows higher yields.
•Remote diagnostics capability.
•Stainless steel base and a completely jacketed arm makes the JR-50 easy to clean and maintain.
•Stainless steel protective fencing.
•Small footprint to conserve space on the slaughter line.
•Industrial hardened, real-time controller with 3D vision.

Model JR-50
Operating Air Pressure
30 psi
2.0 bar
Dip Tank
Overall Dimensions (L x W x H)
4.6x4.3x5.8 ft
1.40x1.32x1.78 m
Cage Area
7 x 12 ft
2 x 3.65 m
1812 lbs
822 kg
Electrical Power Requirements
          Operating Voltage
208 - 550 VAC, 3 phase, 50/60 Hz
Model 30CL-1R Cutting Tool
Cutting Force
9900 lbf
Cutting Cycle Time
1.5 sec
Blade Opening
          At Tips (Standard)
4.0 in
102 mm
5.75 in
146 mm
Overall Length
32 in
813 mm
Tool Weight
38 lbs
17.2 kg
Hydraulic Power Unit:
Motor Power
5 hp
3728 W
Operating Voltage
460 / 230 V, 3 phase, 60 Hz
other voltages and 50 Hz available
Oil Capacity
20 gal
76 L
Overall Dimensions (L x W x H)
28x22.5x28 in
71x57x71 cm
Weight (without oil)
200 lbs
91 kg
